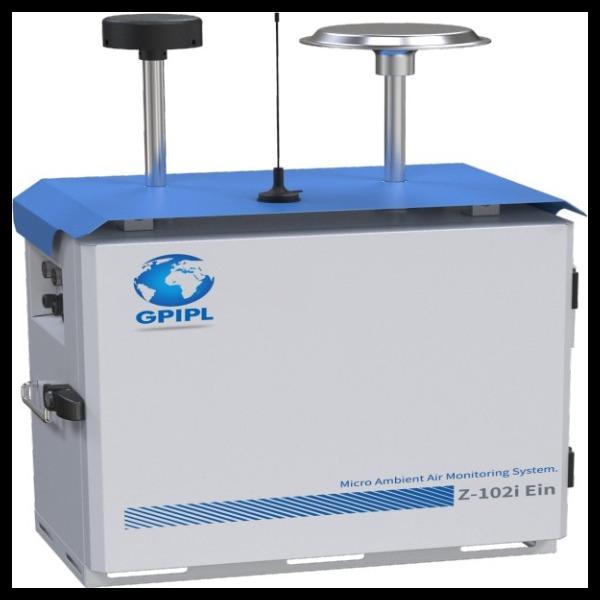

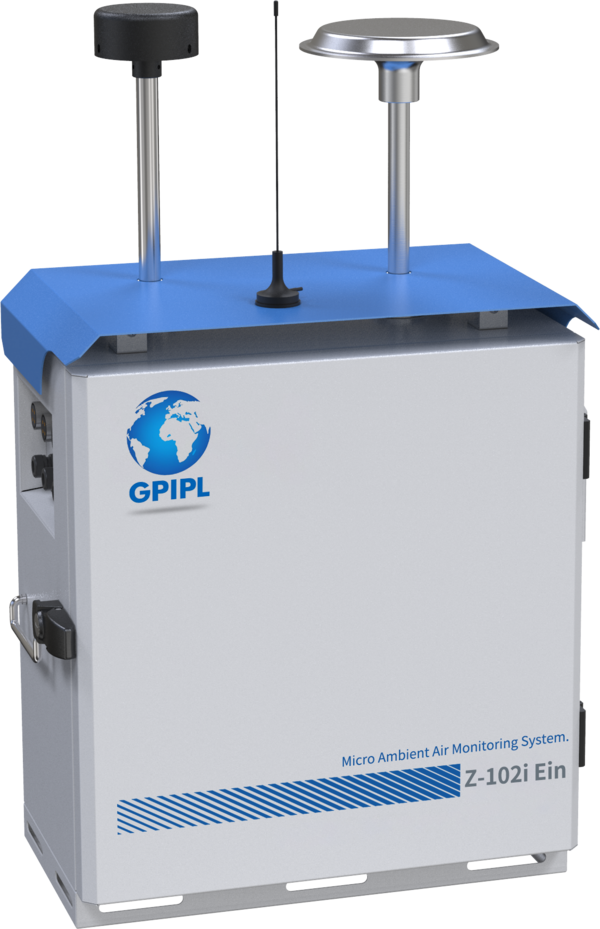

Z-102i Ein - Micro Environment Air Monitoring System is a small online environmental monitoring system based on high precision (ppb level) gas sensor. It provides flexible sensor combination scheme and modular design, as well as online monitoring of PM10, PM2.5, SO2, NO2, O3, CO, VOCs, temperature, humidity and other factors in the atmosphere. Special factors can also be quickly configured according to the actual environmental monitoring requirements. The system is equipped with special temperature control system and sensing module to improve the environmental adaptability of the system and ensure the accuracy of monitoring data. Compared with conventional air stations, this system can realize high-density grid layout, achieve air pollution monitoring with high spatial and temporal resolution, and provide more timely and effective decision support for the pre-warning and prevention of environmental air pollution by combining the functions of Big Data, including environmental pollution source tracking and environmental pollution pre-warning and prediction, etc.

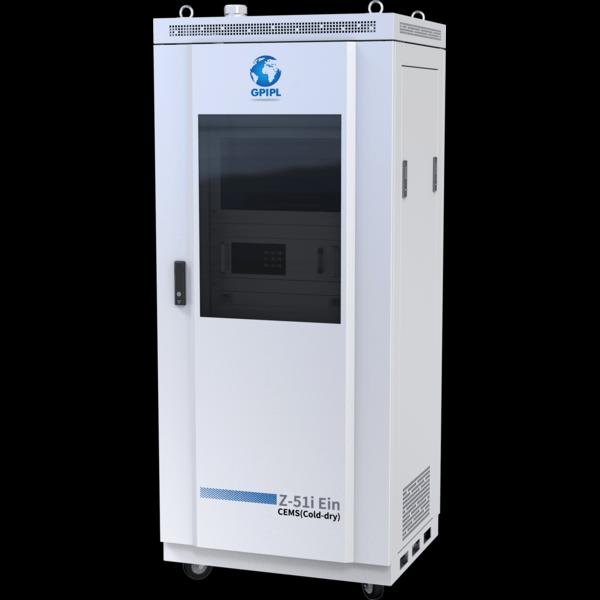

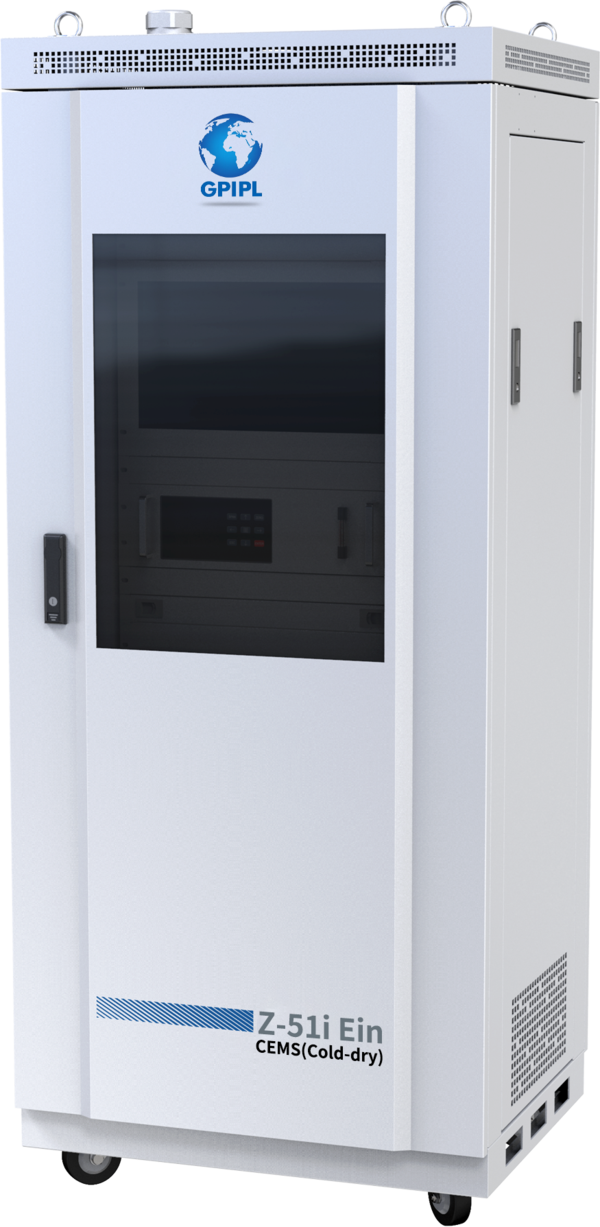

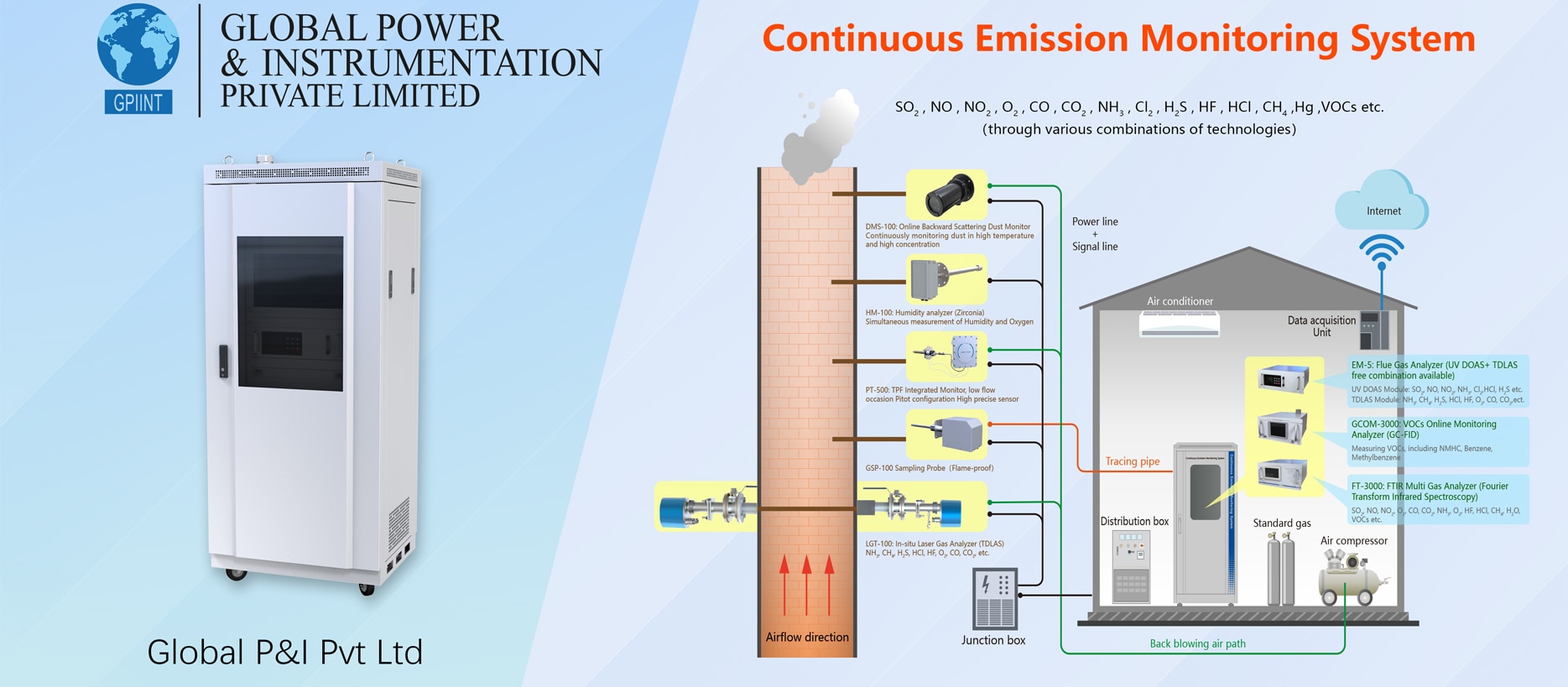

Based on standard Continuous Emission Monitoring System (Condensation), our company has developed a Positive-pressure Explosion-proof Continuous Emission Monitoring System. Z-51i Ein Continuous Emission Monitoring System is composed by explosion-proof dust monitoring subsystem, explosion-proof gaseous pollutant monitoring subsystem, explosion-proof flue gas parameter monitoring subsystem, and system control & data acquisition & processing subsystem. It can monitor SO2, NOX, O2, dust, temperature, pressure, velocity, etc. Other parameters can be extended as required for special occasions, such as HCl, HF, CO, CO2, humidity, etc

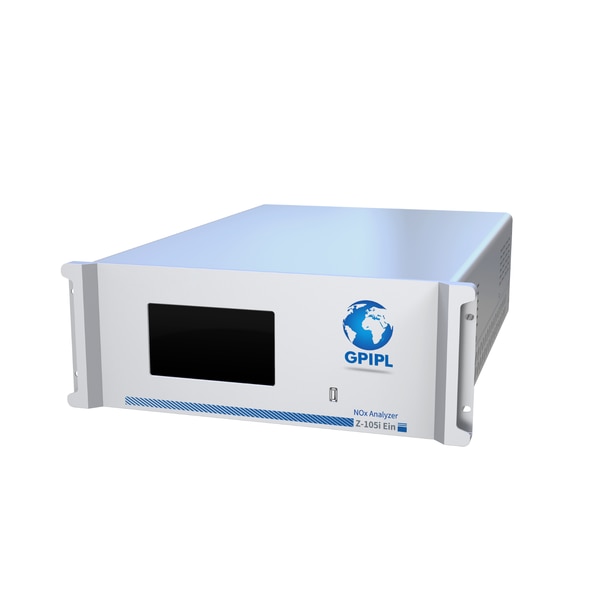

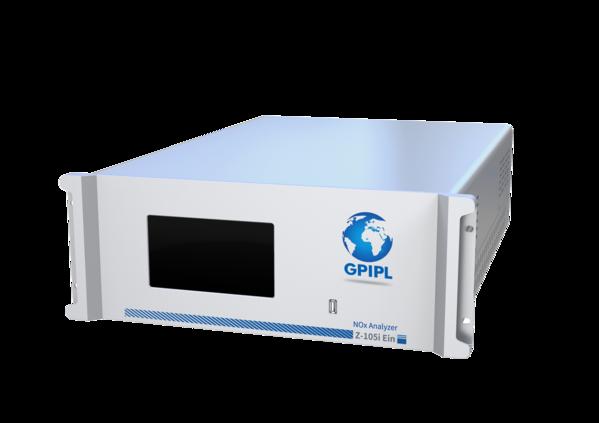

Based on the Chemiluminescence Principle, the NOX analyzer adopts modular structure design and combines with advanced Microprocessing Technology to provide accurate and reliable low-concentration NOX detection of 'PPB~PPM' level, which can be applied to atmospheric detection and CEMS system (dilution method). Features: Measurement range from 0~500ppb to 0~20ppm, selectable. Measure NO, NO2, NOX independently. Installed with permeable drying tank on ozonator. Bidirectional RS232 port for remote control. Timed dark current compensation, high stability. Adaptive signal filtering technology optimizes response time. Large capacity memory, store historical data automatically. Application Applied to atmospheric monitoring. Specifications Measuring range: 0~500ppb, 0~20,000ppb (adjustable) Unit: ppb, ppm, ug/m3, mg/m3 Zero noise:<0.2ppb（RMS） Limit of detection: 0.4ppb Zero drift:<1ppb/24h Span drift:<5ppb/24h Response time:<120s (T90) Linearity:<1%/F.S. Repeatability:<1% Sampling flow range: 400SCCM±50SCCM Ambient temperature: 5℃~40℃ Dimension: 178mmx430mmx635mm Weight:<16kg, external pump of 5kg Power: 200V~240V, 50/60Hz, 400W Analog output: 10V, 5V, 1V, 0.1V (selectable) Communication: RS232, RS485
