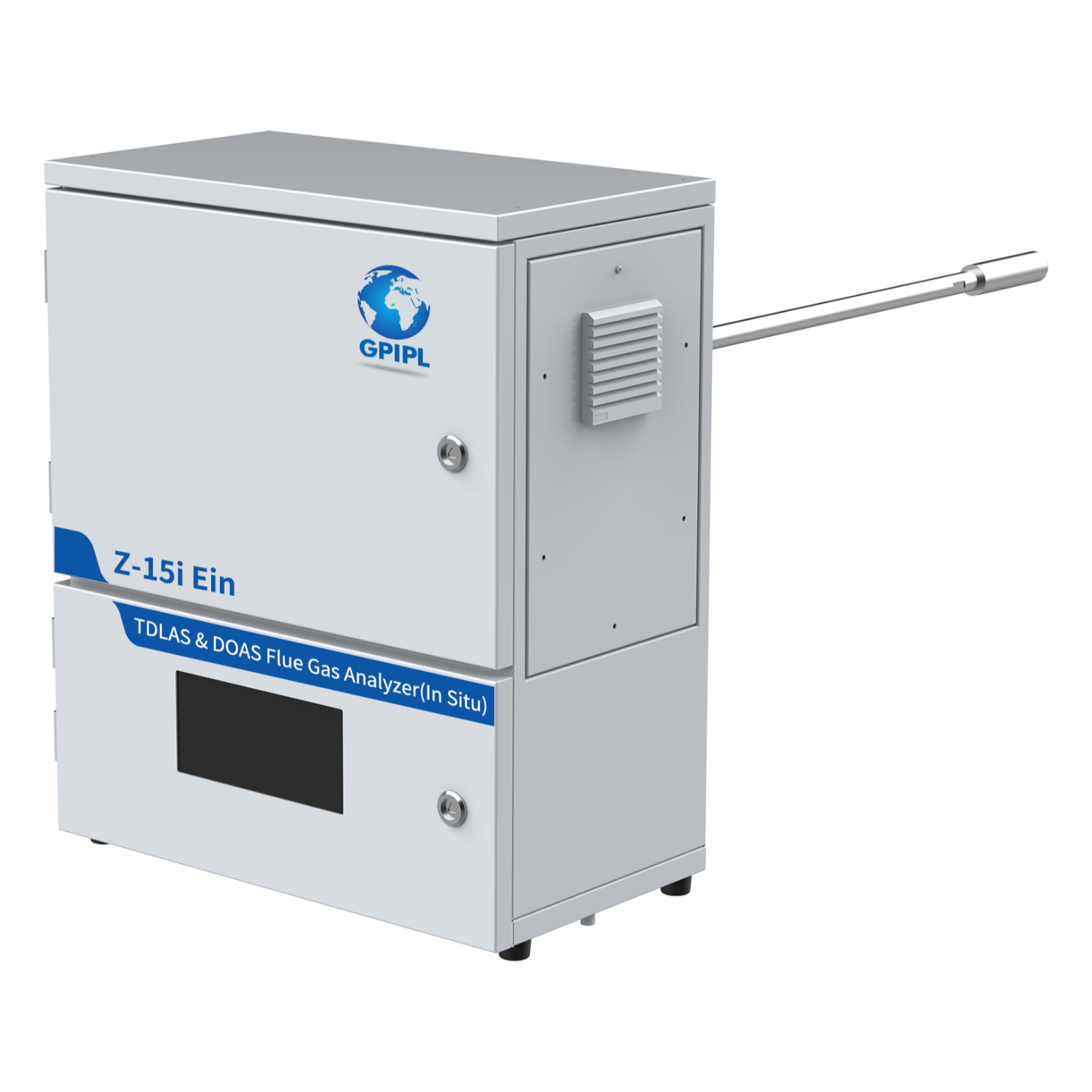

Z-15i Ein TDLAS & DOAS FLUE GAS ANALYZER
In-situ online gas pollution monitoring system using TDLAS & DOAS technology for real-time, continuous, high-accuracy measurement of flue gas components (SO₂, NOx, CO, CO₂, NH₃, O₂) directly in the stack without sample extraction.
AVALIABLE IN STOCK
Online Flue Gas Pollution Monitoring System Using TDLAS & DOAS In-Situ Gas Analyzer
In-Situ TDLAS & DOAS Flue Gas Analyzer for Continuous Emission Monitoring
Advanced Gas Pollution Monitoring: TDLAS & DOAS In-Situ Analyzer for Flue Gas
Continuous In-Situ Flue Gas Monitoring Using TDLAS and DOAS Technologies
Real-Time Emission Monitoring with TDLAS & DOAS In-Situ Gas Analyzer
- Specifications
- TDLAS Technical Index.
- Principle: TDLAS
- Range: CO: 0-1000ppm, CO2 : 0~25%
- Indication error: ≤2%F.S.
- Repeatability: ≤2%F.S.Zero drift: ≤2%F.S./7d
- Span drift: ≤2%F.S./7d
- DOAS Technical Index
- Principle: DOAS
- Range: SO2: 0~1000ppm, NO: 0~1000ppm, NO2: 0~1000ppm
- Indication error: ≤2%F.S.
- Repeatability: ≤2%F.S.
- Zero drift: ≤2%F.S./7d
- Span drift: ≤2%F.S./7d
- Power: (220±15%)VAC, 50Hz, 600W
- Gas source: 0.4~0.8MPa, oil-free, water-free and dust-free
- Response time: T90≤10s (double modules)
- Analog output: 5x4-20mA output (depend on gas combination)
- Switch input: 4xRelay output
- Digital input: 1xRS485 output
- Ambient temperature: -20℃~60℃
- Ambient humidity: ≤90%RH, non condensing
