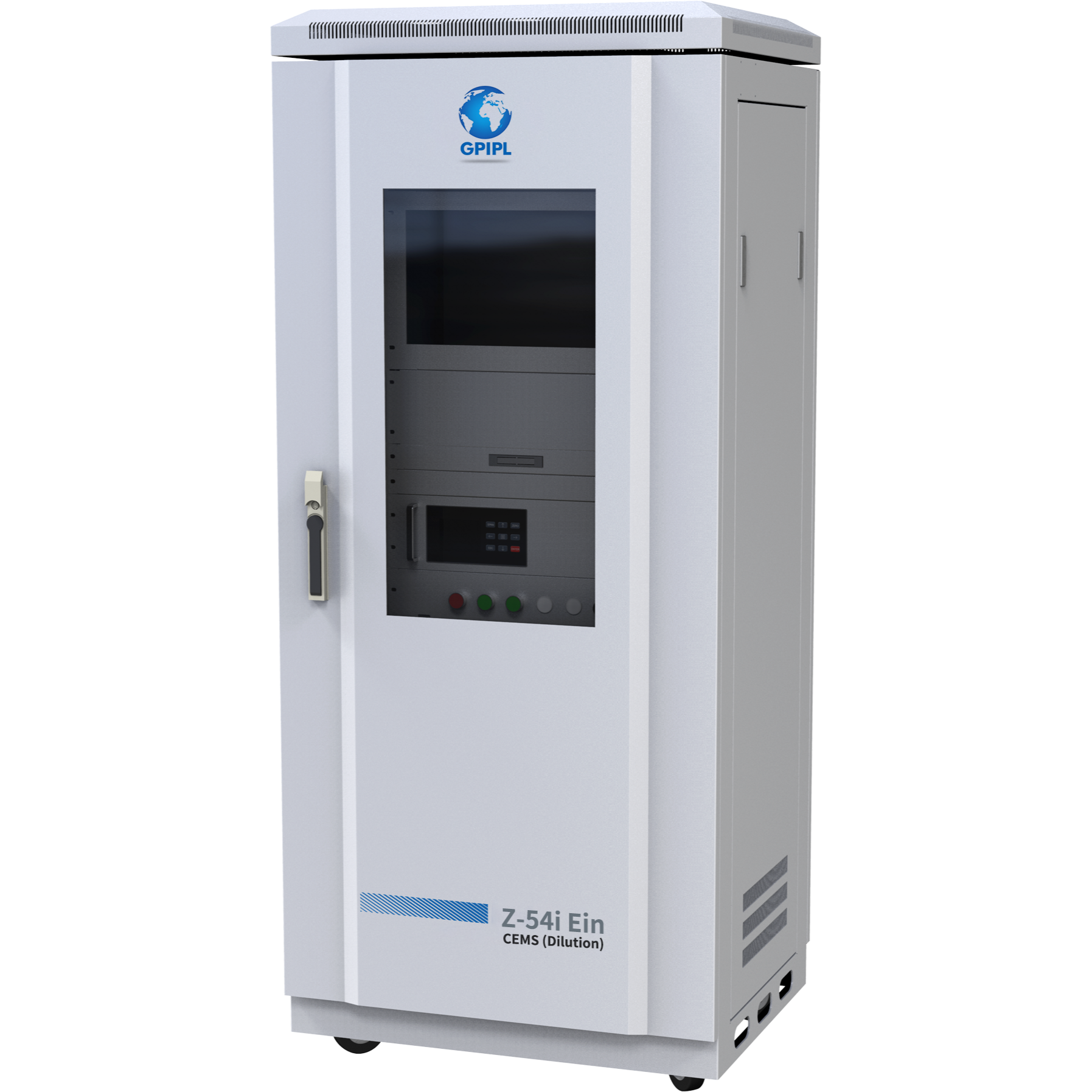

CEMS (Dilution) – Z-54i Ein Mercury Continuous Emission Monitoring System The Z-54i Ein Mercury CEMS (Dilution) is an advanced environmental monitoring system designed for real-time measurement of mercury concentration and cumulative mercury emissions in flue gases. It operates using Cold Atomic Fluorescence Spectrometry (CAFS) technology, ensuring high sensitivity and accuracy. The system consists of: Sampling probe Heated tracing line Pretreatment system Mercury analyzer Elemental mercury generator Ionic mercury generator Nitrogen generator It enables continuous online monitoring of: Elemental mercury (Hg⁰) Ionic mercury (Hg²⁺) Total mercury With a detection limit as low as 0.05 μg/m³, it delivers highly reliable measurements. Key Features Advanced CAFS Technology Low detection limit with minimal temperature drift High Efficiency Sampling System Large flow extraction ensures fast response and strong adsorption resistance Long Maintenance Cycle Probe design with internal & external purge technology Real-Time Dilution Correction Automatically calculates actual Hg concentration based on dilution ratio High Conversion Efficiency Catalyst reaction at 800°C with up to 95% valence conversion efficiency Applications Suitable for mercury emission monitoring in: Mercury ore refining processes Mercury catalyst recovery plants Coal-fired power plants Industrial flue gas emission monitoring Technical Specifications Measuring Principle: Cold Atomic Fluorescence Measurement Range: 0–20 μg/m³ to 0–200 μg/m³ (customizable) Detection Limit: 0.05 μg/m³ Indication Error: ≤ 5% Repeatability: ≤ 1% Stability: ≤ 1% / hour Zero Drift: ≤ 1% F.S. Span Drift: ≤ 1% F.S. System Details Dimensions: 800 × 600 × 1800 mm Protection Grade: Cabinet IP42, Components IP65 Power Supply: 220V ±15%, 5000W Operating Temperature: -20°C to 50°C Humidity: 0–95% RH (non-condensing) Compressed Air: Pressure: 0.9 MPa Flow: 0.25 m³/min Condition: Clean, oil-free, moisture-free Mercury Monitoring, CEMS System, Continuous Emission Monitoring, Flue Gas Analysis, Environmental Monitoring Mercury CEMS Analyzer (Dilution Type) – Real-Time Flue Gas Monitoring Z-54i Mercury CEMS System | Continuous Emission Monitoring Solution Mercury Emission Monitoring System (CEMS) for Power Plants & Industry High Accuracy Mercury Analyzer – CEMS Dilution System (CAFS Technology) For more information, please contact us at +91 9875955488.
