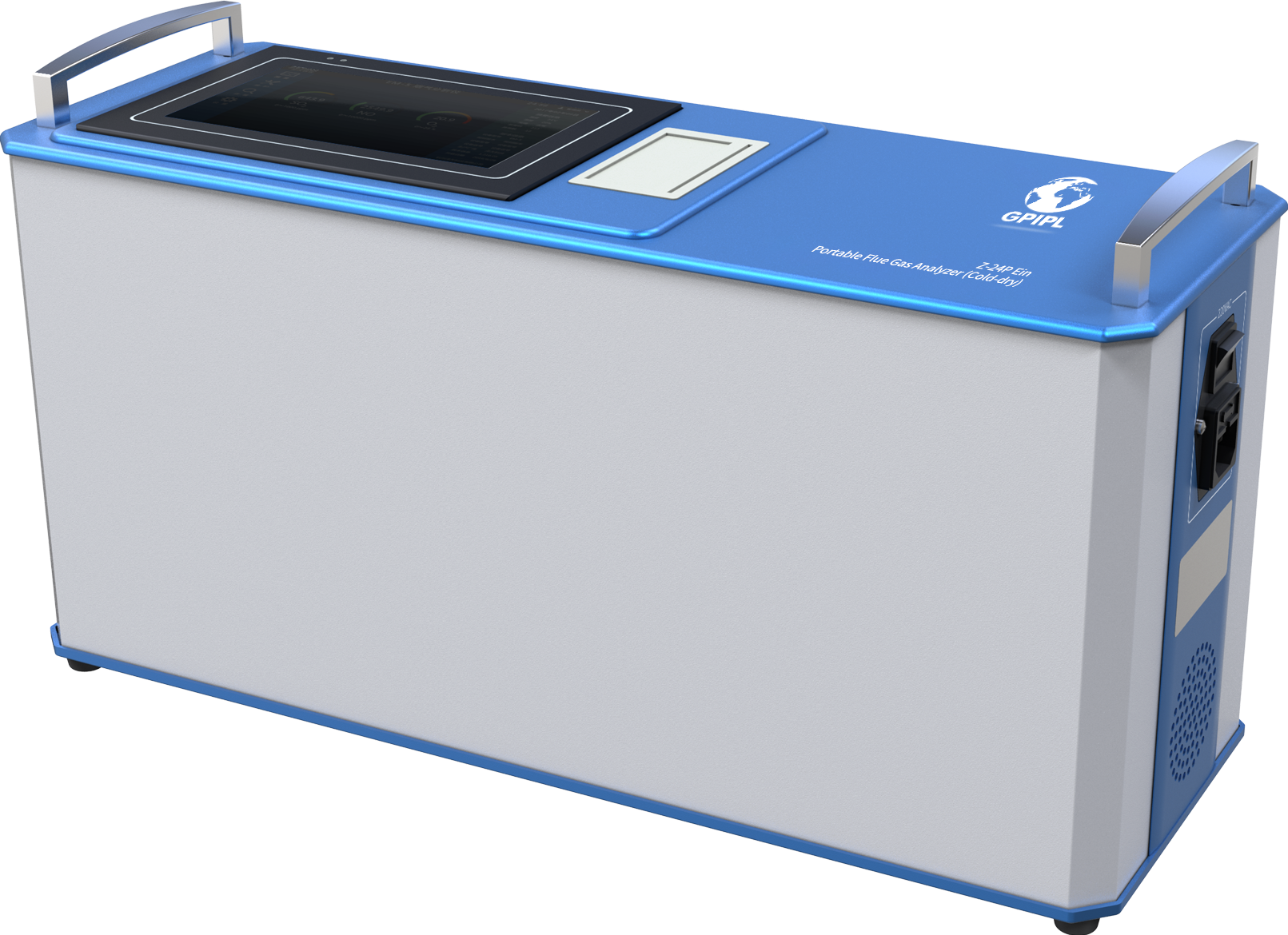

With UV-DOAS as its core technology, the Z-24P- Ein adopts a long-life pulsed xenon light source, a corrosion-resistant measuring cell, a high-resolution spectrometer, and at the same time a high-precision sensor, which ensures reliability and stability of the instrument. It is mainly used to measure harmful gas components (SO2, NO, NO2, O2, CO, CO2) in exhaust pipes, and is suitable for on-site analysis of flue gas components in various boilers, flues, industrial furnaces and kilns and other stationary sources. Features Features Short preheating time for fast measurement; Measurement of multiple components including SO2, NO, NO2, O2, CO, CO2; Full UV spectrum measurement, without cross interference between CO and SO2; Electronic scanning of full spectrum, no optical moving parts; Low requirements for measured gas, able to applied in dusty and high humidity working condition; High measurement accuracy, low drift and fast response time; NOX concentrations can be directly obtained by measuring NO and NO2 without NOX converter. Applications Parameters: SO2, NO, NO2, O2, CO, CO2, flue gas temperature, pressure and velocity Indication error: ≤±2%F.S. Repeatability: ≤2% Zero drift: ≤±2%F.S./h Span drift: ≤±2%F.S./h Power supply: AC (220±22)V, (50±1)Hz Power consumption: 500W Measurement of concentrations of sulfur dioxide, nitrogen oxides and other harmful gases in working conditions of various stationary sources, measurement of flue gas parameters and oxygen content
